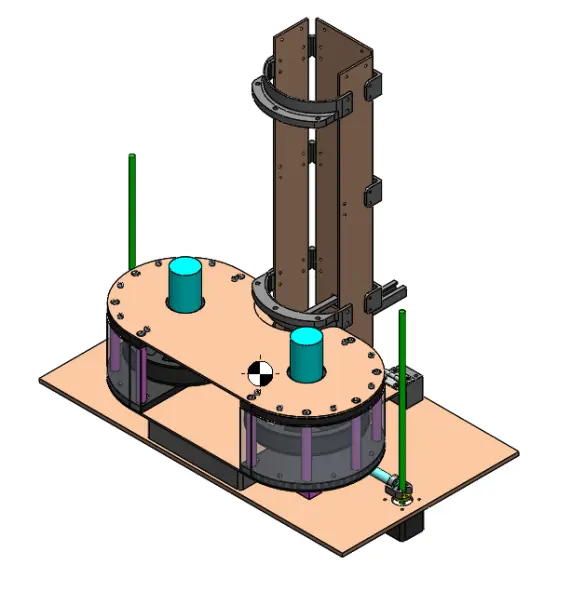

The launcher is mostly designed. A full post describing components in greater detail will come once the last axis is design (rotational motion) The green indicates threaded rods that will angle the launcher up and down.
The blue cylinders are the brushless DC motors.
The brown panels are laser cut wood.
Black / grey parts are 3D printed components.
